Vision Lithium Batteries
Vision Lithium Batteries
High-tech energy storage solutions using Lithium Iron Phosphate (LiFePO₄) technology, designed for UPS, Industrial BESS, Off-Grid, and Residential Energy Storage applications.

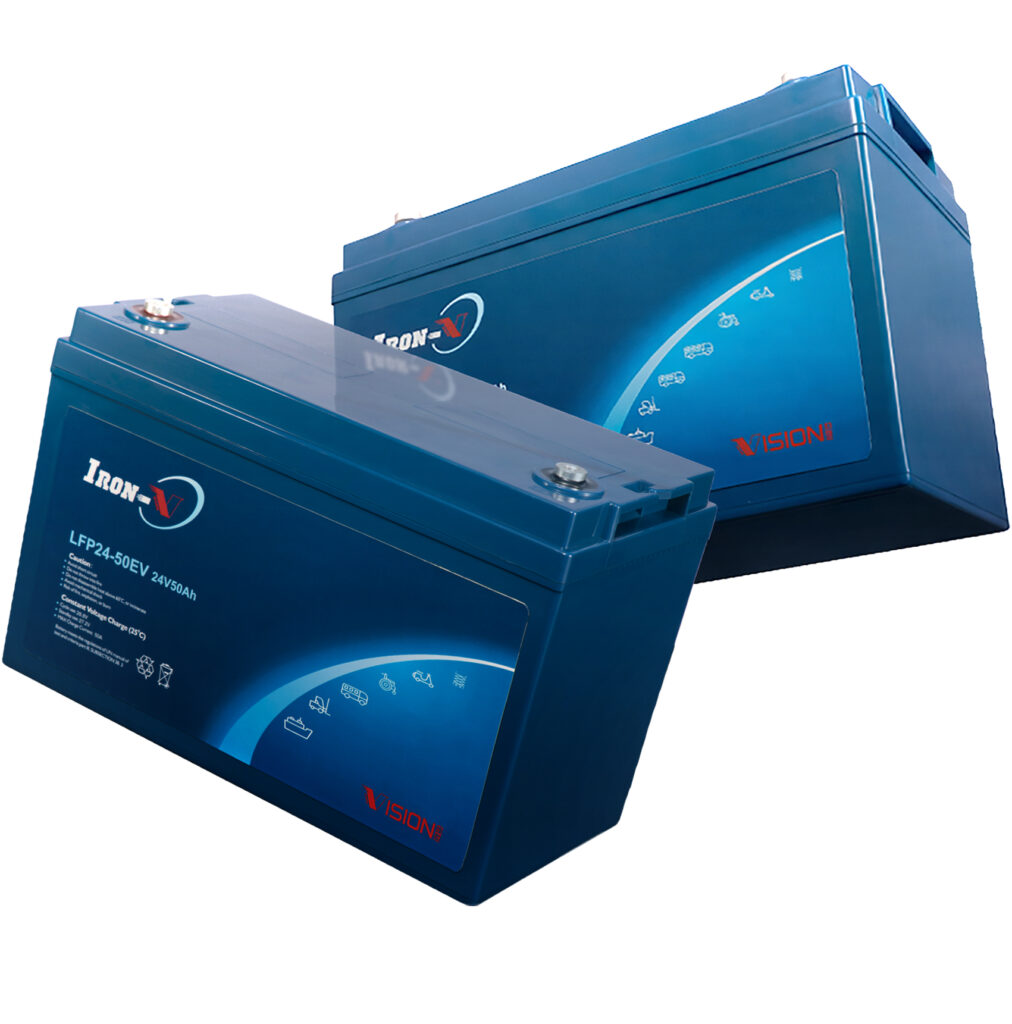

The new series of lithium batteries from the Vision Group, represented officially by ACE Power Electronics, is designed for direct replacement of conventional lead-acid batteries across a wide range of applications. The Vision Group boasts one of the largest and most specialized Research and Development teams, with extensive experience in developing new products that meet customer needs, creating one of the widest varieties of battery models and technologies on the market.
This unique advantage allows the Vision Group to provide the ideal solution for every application, optimizing cost, performance, weight, and size of the batteries, while meeting or even exceeding customer requirements.
The Vision Group offers safe LiFePO₄ energy storage solutions in standard 19” cabinet sizes (1U–5U), as well as in standard lead-acid battery dimensions, for applications such as backup power for telecommunications systems, remote or off-grid areas, renewable energy storage systems, and UPS.
Features
Technical Specifications
Product Brochure
Key Advantages
-
Direct Lead-Acid Replacement (Drop-in Replacement)
-
High Safety: LiFePO₄ chemistry eliminates fire or explosion risk, with integrated BMS
-
Long Lifespan: over 3,000 charge/discharge cycles at 80% DOD
-
Up to 15 years floating life
-
Real-time monitoring via Bluetooth
-
Low-temperature resistance
-
Lightweight: 50–60% lighter than equivalent lead-acid batteries
-
Designed for hybrid networks and multiple applications
Features of the Vision Lithium Battery Series
-
High energy density (e.g., 100Ah in just 4U height)
-
Long cycle life: up to 6,000 cycles
-
Very fast recharge
-
High efficiency at deep discharge (up to 80% capacity)
-
Integrated BMS protection system
-
Fuel savings and reduced downtime for installations with generators
-
Partial State of Charge (PSOC) operation without capacity loss
Example Applications
Vision lithium batteries can be used in:
-
UPS systems
-
Industrial BESS
-
Telecommunications facilities
-
Standalone / Off-Grid energy systems
-
Residential Energy Storage systems
-
Solar and hybrid energy systems
-
Marine / RV applications
Why choose Vision Lithium Batteries
-
Drop-in Replacement: directly replace lead-acid batteries without changing the charging system
-
High Safety: BMS protects against overcharge, deep discharge, and overheating
-
Long Lifespan: up to 3,000 cycles (80% DOD) versus ~350 cycles for conventional batteries
-
Smart Management: monitors voltage, current, temperature, and SOC via smartphone
-
Low Total Cost of Ownership (TCO): fewer replacements and reduced costs
-
Fast Charging: full charge in about one hour
| Model | LFP12-9EV | LFP12-20EV | LFP12-60EV | LFP12-100SEV | LFP12-150EV | LFP12-200EV | LFP24-100EV |
| Specification | 12V9Ah | 12V20Ah | 12V60Ah | 12V100Ah | 12V150Ah | 12V200Ah | 24V100Ah |
| Nominal Voltage /V | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 25.6 |
| Capacity/Ah | 9 | 20 | 60 | 100 | 150 | 200 | 100 |
| (0.5C/25℃) | |||||||
| Energy/Wh | 115 | 256 | 768 | 1280 | 1920 | 2560 | 2560 |
| weight/Kg | 1.25 | 3.3 | 9.3 | 10.3 | 20 | 24.5 | 24 |
| Dimension/mm | 65*152*98 | 181*77 *167 | 229*138 *213 | 306*169 *215 | 482*170*240 | 527*222 *249 | 527*222*249 |
| Terminal | F2 | M5 | M6 | M8 | M8 | M8 | M8 |
| Max Discharge Rurrent /A | 18 | 30 | 60 | 100 | 150 | 150 | 100 |
| Max Charge Rurrent /A | 9 | 20 | 60 | 100 | 150 | 150 | 100 |
| Peak Discharge Current /A | 25(10mS) | 80(10S) | 100(10S) | 200(15S) | 200(15S) | 245(15S) | 200 |
| Shell Material | ABS | ABS | ABS | ABS | ABS | ABS | ABS |
