Neo III 3P/3P (60KVA)

Neo III 3P/3P (60KVA)

On line UPS

UPS Neo ΙΙI 3P/3P is a reliable solution signed by ACE Power Electronics.  The Neo III 3P/3P uses double conversion technology to provide clean, high level quality power to fully protect mission-critical devices such as communications networks, small computer centers, servers, telecoms applications and industrial applications.



Features

Technical Specifications

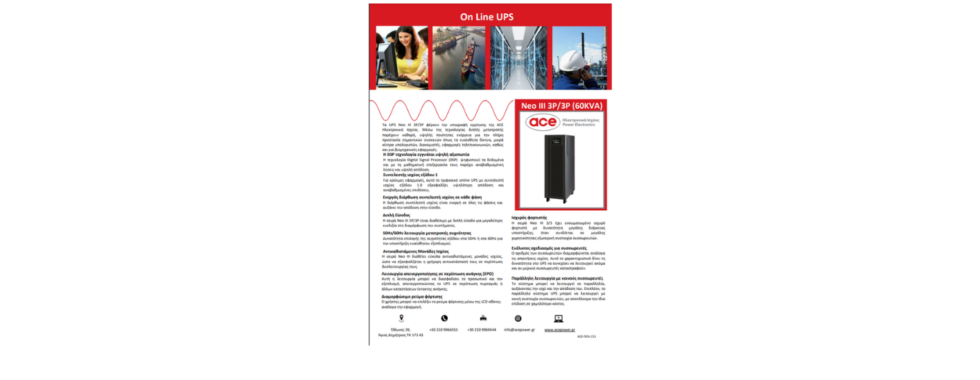

Product Brochure

DSP technology guarantees high reliability

Digital Signal Processor (DSP) technology digitizes data and mathematically processes it to provide upgraded solutions and high performance.

Output power factor 1

For critical applications the online three-phase UPS with output power factor 1.0 ensures higher and upgraded performance.

Αctive power factor correction in each phase

The power factor correction is active at all periods and increases the input performance.

Double input

Neo III 3P/3P is available optional and with double input for higher flexibility in system configuration.

50/60 Hz Frequency Converter Mode

Ability to select the output frequency at 50 Hz or at 60 Hz to support sensitive equipment.

Replaceable Power Units

Neo III 3P/3P has easily replaceable power units, to ensure their rapid replacement in case of malfunction.

Emergency Power Off (EPO) Function

This feature can secure the personnel and equipment in case of emergency.

Configurable charging current

The user can select the charging current  through the LCD screen depending on the application.

Powerful charger

The Neo III 3P/3P series has a built-in powerful charger with long-term support capabilities, when connected to a high-capacity external battery pack.

Flexible design for batteries

Τhe number of batteries is adjusted according to the power requirements. This feature allows the UPS to continue to operate even if some batteries are damaged.

Parallel operation with common batteries

The system can operate in parallel, increasing its power and efficiency. In addition, the parallel UPS system can operate with a common battery pack, resulting in the same performance at a lower cost.

ModelNeo III 60K
PHASE3 phase input / 3 phase output
POWER60KVA/60KW
PARALLEL CONFIGURATIONup to 4 units totally

INPUT

Nominal Voltage3 x 360/380/400/415 VAC (3Ph+N)
Voltage Range110-300 VAC @ 50% load 176-276 VAC @ 100% load
Frequency Range40~70Hz
Power Factor≥ 0.99 @ 100% load
Distortion (THDi)< 4% with linear load

OUTPUT

Output Voltage3 x 360*/380*/400/415 VAC (3Ph+N)
AC Voltage Regulation (Batt.Mode)± 1%
Frequency Range (Synchronized Range)46~54Hz or 56~64Hz
Frequency Range (Batt.Mode)50/60 Hz ± 1%
Crest Factor3:1 (max)
Harmonic Distortion≦ 2 % THD (linear load) ; ≦ 5 % THD (non linear load)
Transfer TimeAC Mode to Batt. ModeZero
Inverter to BypassZero
Waveform (Batt. Mode)Pure Sine wave
Overload100-110 for 60 min, 111-125% for 10 min, 126%-150% for 1 min, >150% immediate shutdown

BYPASS

Nominal Voltage3×360/380/400/415 VAC (3Φ+Ν)
Voltage Range305-457 VAC
Frequency Range (Synchronized Range)46~54Hz or 56~64Hz
Overload>130% 1 min (default)
Continuous operation until first activation (optional)

EFFICIENCY

AC Mode95.5%
ECO Mode98.5%
Battery Mode94.5%

BATTERIES

Typedepends on the application
Number12V x 32~40 pcs (configurable)
Charging Current (max.)1-18A, (configurable)
Charging Voltage+/-13.65V*N (N = 16~20)

INDICATORS

LCD PanelUPS status, Load level, Battery level, Input/Output voltage, Discharge timer, Fault conditions

PHYSICAL

Dimension, D X W X H (mm)815x300x1000
Net Weight (kgs)74

ENVIRONMENT

Temperature0-40°C
Humidity< 95% non condensing
Altitude0 ~ 1000m full load
Noise Level< 70dB @ 1 m

COMMUNICATION

Smart RS-232 / USBSupports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux and MAC
SNMP
Power management from SNMP and web browser (optionally)

Download the Pdf here
